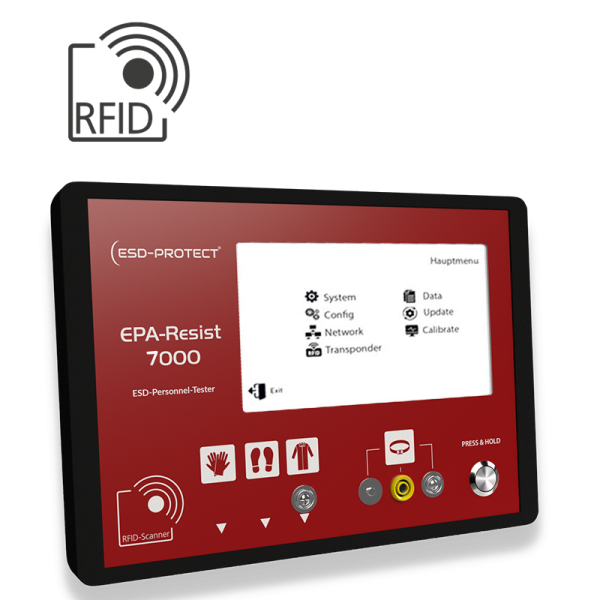

Grounding tester EPA-RESIST 7000

Price on request

Prices plus VAT plus shipping costs

Foot electrode:

  • EP0206076
  • ESD-PROTECT - Technik
  • ESD-PROTECT - Technik
Funktionalität: 7“ Touch-Farbdisplay: Übersichtliche und intuitive Bedienung mit... more
  • Personnel indentification via RFID transponder
  • ESD-personnel tests according to DIN EN 61340-5-1
  • Electronic saving of test results
  • Control of access points through potential-free contacts

ESD-tests

Verifying of compliance

Wrist strap

IEC 61340-4-6

Wrist strap system

Shoes

IEC 61340-4-5

System Person/Shoes

Shoes "Hands-Free", automatic

IEC 61340-4-5

System Person/Shoes

Body voltage1)

IEC 61340-4-5

System Person/Shoes/Floor

Work cloak/ Smock

IEC 61340-4-9

Conductive EPA clothing

Gloves

IEC TR 61340-5-2:2018

Mit Testelektrode

 1)            Passive voltage test for at-risk people (with pace-makers, insulin pumps, hearing aides or pregnant people)



Settings/Configuration

  • Use through touch display and integrated screen menu
  • Through PC web app (programmed into the EPA-RESIST 7000, no extra installation necessary)



Functionality

  • Individual-related test profiles
  • Free setting of limits
  • Different test voltages for each test profile selectable
  • Validity check of timed access (e.g.: valid ESD-seminar attendance or working time models)
  • Free access times after a single test without having to check after for each entrance, for a set amount of time
  • Very quick and accurate measurements thanks to a modern micro processor, displaying of results on color display
  • Saving of all test results with temperature and humidity on internal storage
  • Individual-related information can be anonymised data protection conform
  • Control of electronic entrance systems via 3 configurable relays (potential-free contacts as "opener-" or "closer-configuration")
  • Checking of test results via

-          USB port

-          LAN to a PC

-          Active data pushing to a PC in real time (with the optinal „Data logger“ - App 2) )



  • Connection of multiple EPA-RESIST 7000 possible (through PC-Master upgrade)
  • An integrated bootloader allows updates or software chnages through the user via the USB-Master port.



Optional extensions:

1  PC-App PC Master

    Connection of multiple EPA-RESIST through central data administration PC-Master, which negates network intensive mirroring of user information onto all systems



2  PC-App data logger 2)
The „data logger“ app saves all test protocolls of the EPA-RESIST 7000/8000 or entrances through a PD 8000S in a daily file within your network in real time. Where all your data protection guidelines can be supported through filtering options.

 3  RFID access control PD-8000S
     Through active free access times of already tested personnel the PD 8000S controls of up to 3 access points within the network. Making complex and spread-apart EPA-zones possible and affordable.

Contents:

  • EPA-RESIST 7000
  • Base for wall- or table mounting
  • Power supply 24V
  • Foot electrode EP0206062
  • Connection cable relay
  • Manual
  • Calibration certificate

Optionally a foot with a holding plate is available (EP0206051)
