Electric field meter EP-EFM 823 with accessory set ZBS
Downloads
Product information "Electric field meter EP-EFM 823 with accessory set ZBS"
Product information Electric field meter EP-EFM 825 with accessory set ZBS

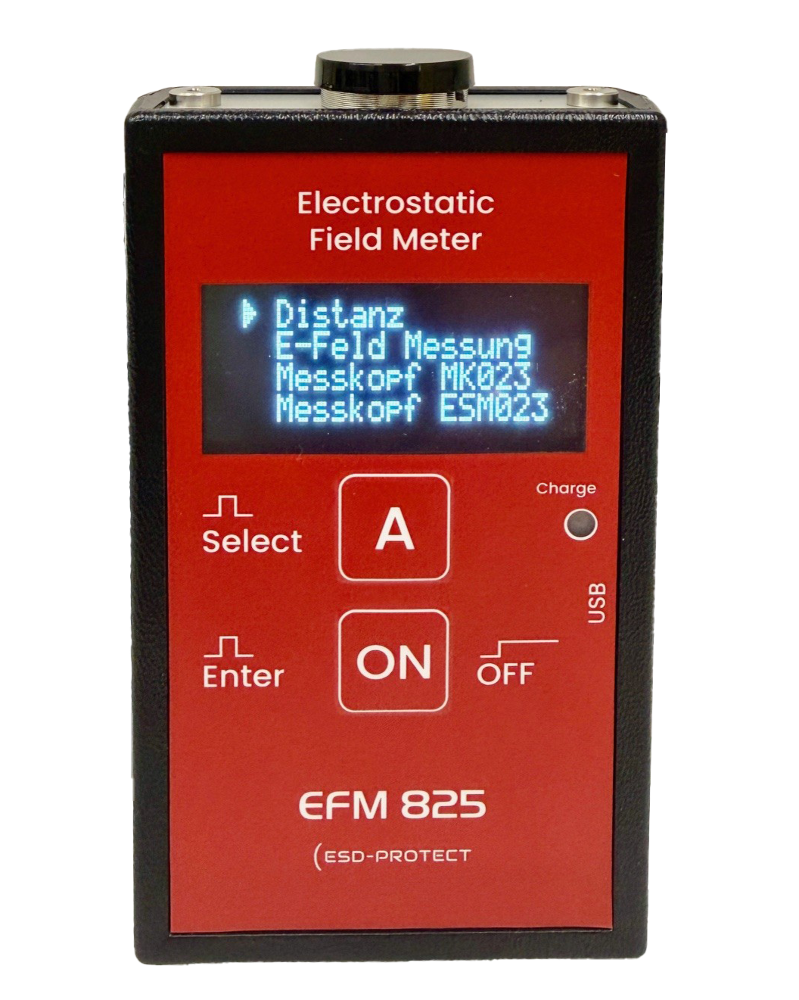

EP-EFM 825 electric field meter with 4-line OLED display, monitor with hold function, USB interface and display of charge in volts. The EP-EFM 825 is supplied in a practical ESD case set.
Menu-controlled measuring distance preselection
Voltage potentials on the test object can be determined directly by preselecting the measuring distance, eliminating the need for time-consuming conversions. There are 5 measuring distances available, enabling optimum handling of the device even in problematic detection areas.
USB interface
Output of measurement data to EFM 025 software / read-out
Hold function
The measured value can be frozen in the display, allowing accurate measurements to be taken even in hard-to-reach areas.
Very high zero point stability
This eliminates the need for zero-point adjustment before each measurement, which is necessary with other systems.
Measuring ranges:
Distance 1cm: 0 to 10kV
Distance 2cm: 0 to 20kV
Distance 5cm: 0 to 50kV
Distance 10cm: 0 to 100kV
Distance 20cm: 0 to 200kV

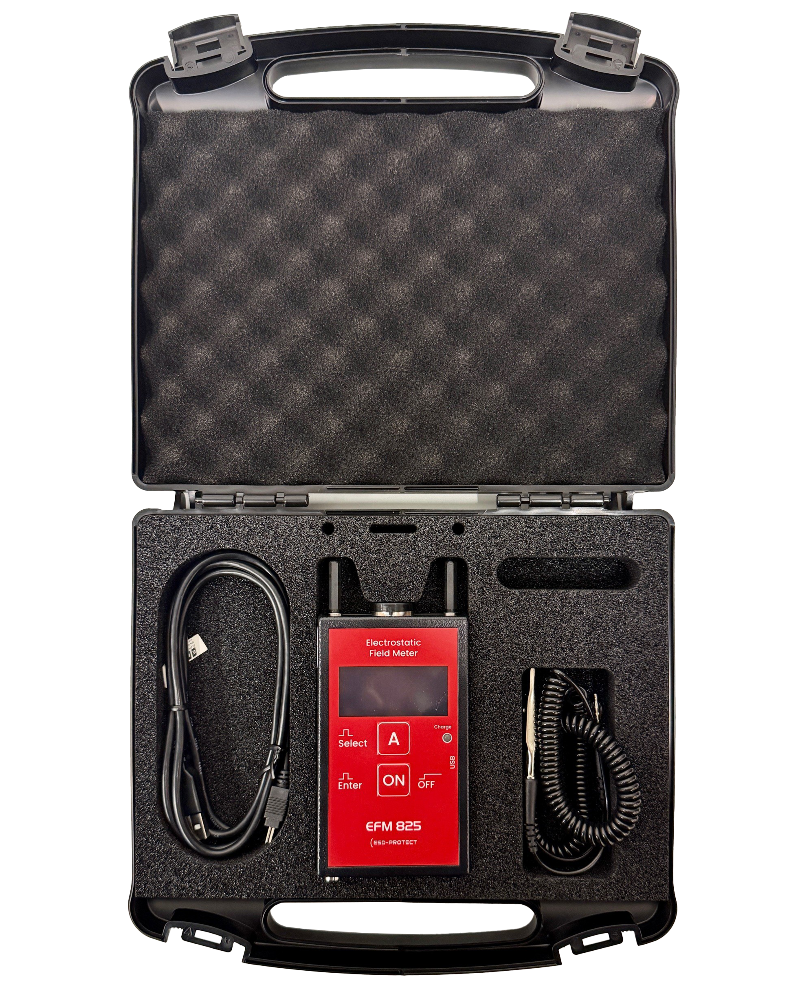

Scope of delivery:
- Measuring device EFM 825
- ESD carrying case
- Li-Ion battery / charging via USB
- Spiral earthing cable
- Pick-up clamp
- USB cable incl. software
