ESD measurement and test equipment
ESD measurements in accordance with ESD standard DIN EN 61340-5-1
Precise measurement and reliable testing are crucial for protecting sensitive electronics. ESD measurement and testing equipment helps you to reliably monitor and ensure discharge capabilities, earthing systems and electrostatic safety within your organisation.
ESD Measuring Equipment: Standards-Compliant Testing for Your EPA
An EPA is only as reliable as its proven effectiveness. DIN EN 61340-5-1 requires that ESD protective measures are not only put in place but also regularly verified and documented. With the right ESD measuring equipment, you verify flooring, work surfaces, grounding systems, personnel grounding and ionization in your facility, and detect deviations before they lead to component damage.
Resistance, Field Strength and Personnel Grounding

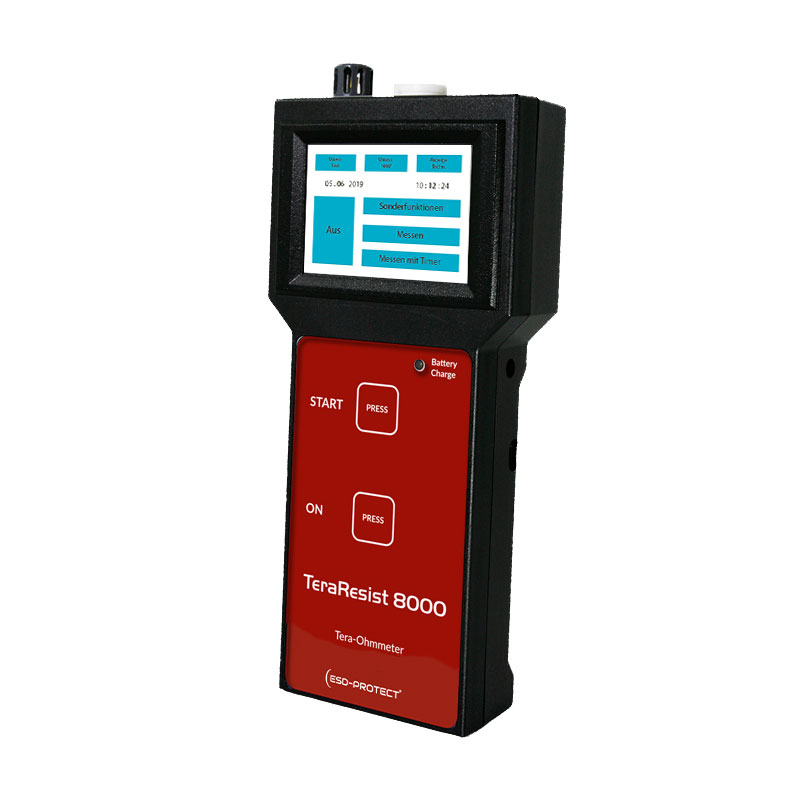

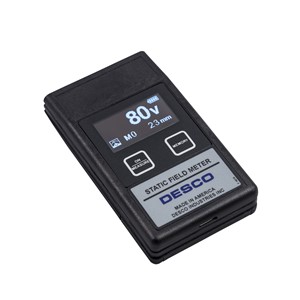

Resistance measurements form the basis of every test. With a teraohmmeter, you determine surface resistances and resistances to ground of table coverings, floors, chairs and transport equipment. Electrostatic field meters detect electrostatic fields and show where insulating materials become charged. The walking test evaluates the system of person, footwear and flooring based on the body voltage generated while walking, complementing the pure resistance measurement with a practical test.
Ionization, Discharge and Ambient Conditions
Where ionizers are used, you demonstrate their effectiveness with a CPM (Charged Plate Monitor). It measures decay time and offset voltage and provides the basis for documentation and maintenance intervals. Measuring devices for recording discharges help identify critical process steps. Humidity significantly influences charging behavior, which is why sensors and humidity meters help monitor ambient conditions. Dedicated test equipment is available for checking the grounding function of sockets and other connections at the workstation.
ESD Audit Kits and Textile Measurements
ESD audit kits combine the measuring equipment required for internal audits in one set and simplify the regular inspection of your EPA. Textile measurements let you verify the dissipative properties of ESD clothing and ensure that protective garments also fulfil their function over their service life.
Calibration, Rental and Training
Measuring equipment must be calibrated regularly so its readings remain reliable. For this we offer a calibration service as well as a measuring equipment rental service for time-limited audits. For the correct use of measurement technology in accordance with the standard, we recommend the ESD Academy seminars, which teach measurement methods and auditing in a practical way. We are happy to advise you on selecting measuring equipment for your requirements.
