ESD audit kit for ESD measurements
All-in-one ESD-relevant measuring devices
An ESD audit kit is a comprehensive test and inspection set for systematically checking compliance with ESD protection measures in production and work areas – ideal for internal audits, certifications or quality assurance.
The following are tested:
- ESD workstations (EPA)
- Conductive mats, grounding points, tools, etc.
- Personal grounding systems
- Wrist straps, shoes, clothing – with test station or measuring device
- ESD floors, surface resistance & body charging when walking (walking test)
- Ionisers, balance & decay time with charged plate monitors
- Materials, surface and contact resistance of packaging, storage boxes, etc.
EP0201125
EP0201091
EP0201090
EP0201076
EP0201077
EP0201078
ESD Audit Kit – Conducting Audit Processes Efficiently and in Compliance
A structured ESD Audit Kit ensures that all relevant test processes in your EPA are carried out reproducibly, in compliance with standards and with complete documentation. Particularly for internal audits or external certifications per DIN EN 61340-5-1 and ANSI/ESD S20.20, a complete kit is essential – it combines all necessary measurement devices in a compact case and significantly reduces organisational effort.
In facilities with multiple EPA zones or changing inspection personnel, a standardised kit establishes clear processes and consistent, comparable measurement results. This reduces sources of error and simplifies traceability during external audits.
ESD Audit Kit – Configurations at a Glance
ESD-PROTECT offers the following configurations depending on the scope of testing required:
ESD Measurement Kit 822 / 823 / 825 – Compact kits consisting of TeraResist 8000, electric field meter (EFM 822, 823 or 825) and measuring electrodes ME 10. Suitable for standardised resistance and field measurements in the EPA.
ESD Audit Kit Basic TeraResist 8000 – Extended set with TeraResist 8000, EFM-825, Charged Plate Monitor, HV generator and walking body voltage test. Covers all essential test areas for standards-compliant EPA audits.

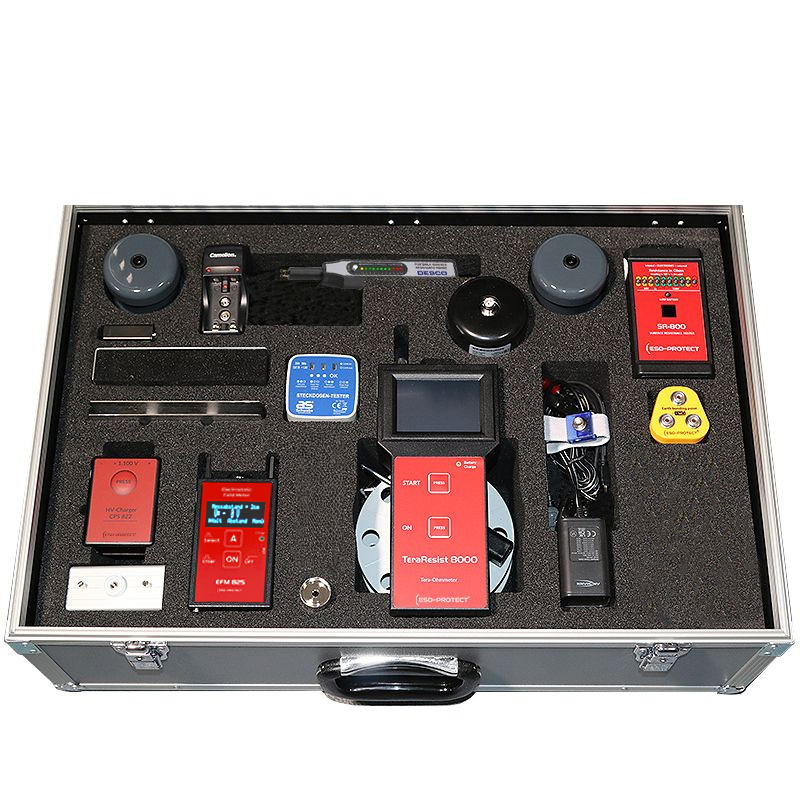

ESD Audit Kit Professional TeraResist 8000 – Complete test equipment including extended accessories for complex EPA structures and comprehensive audit documentation.

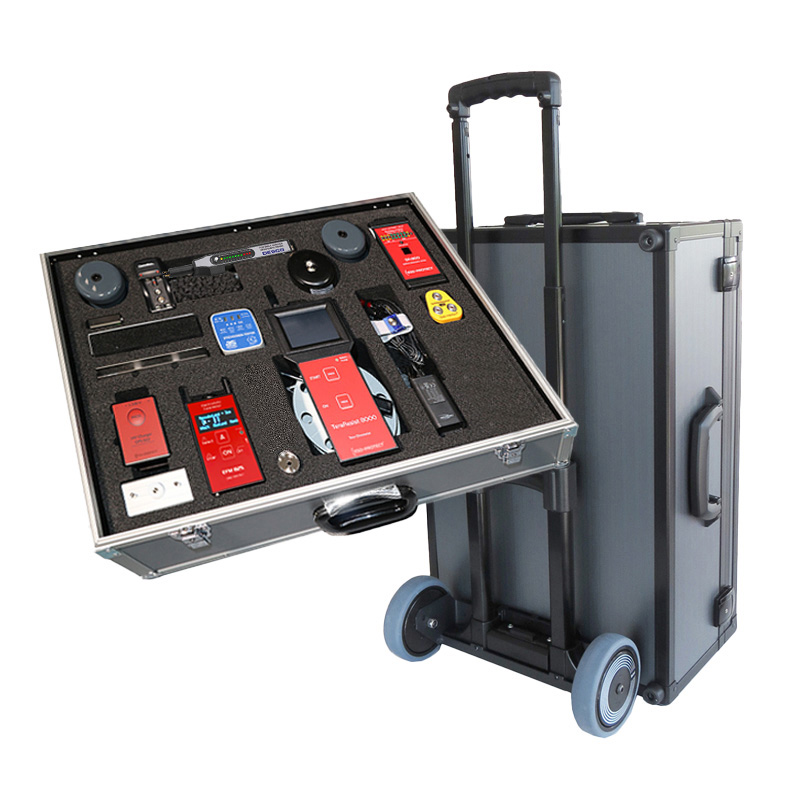

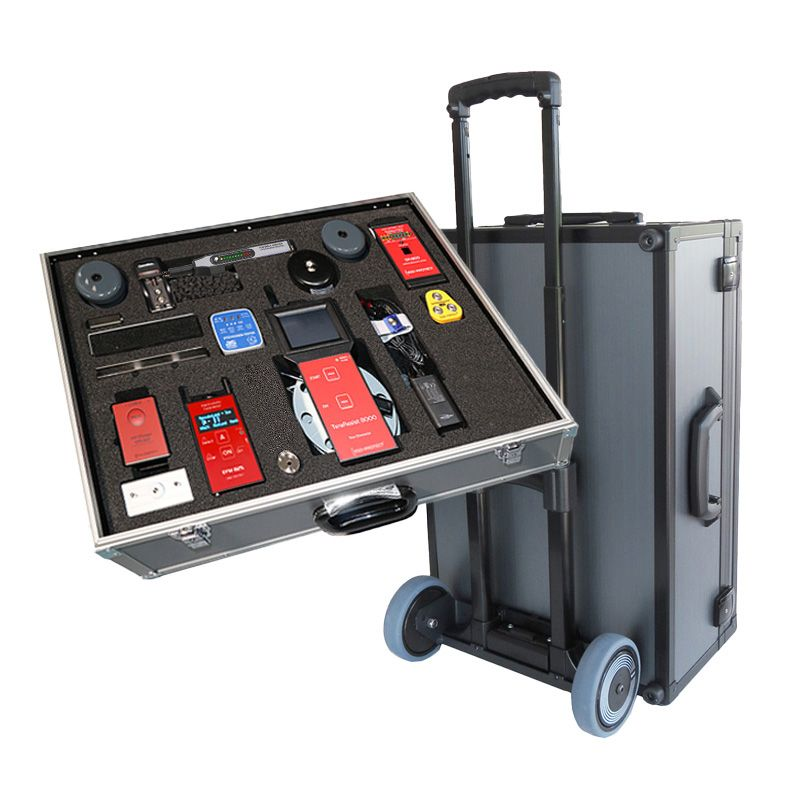

ESD Audit Kit Professional TeraResist with Trolley – Identical scope to the Professional Kit, supplemented by a detachable trolley for mobile use across multiple test zones or sites.
All kits are based on the TERA-Ohmmeter TeraResist 8000 and the electric field meter EFM 825 – calibratable precision instruments for surface, contact and volume resistance measurements as well as the verification of electrostatic fields and ionisers.
