ESD Audit Kit Professional TeraResist 8000
Product information "ESD Audit Kit Professional TeraResist 8000"
ESD Audit Kit Professional TeraResist 8000
Consisting of: Resistance meter TERA-Ohmmeter TeraResist 8000
- Graphical display with break-down function
- Color touch screen display
- 4 fixed measuring voltages: 10V from 1KOhm to 200GOhm, 100V from 100KOhm to 2TOhm, 500V from 500KOhm to 5TOhm, 1000V from 1MOhm to 10TOhm
- Auto voltage
- Timer function
- Internal memory for measurements
- USB interface
Scope of delivery:
- Tera ohmmeter TeraResist 8000
- Plug-in power supply 230V~ / 50Hz - 9V DC / 300mA
- 4 x AA Mignon NiMH batteries
- Test lead (yellow) 2m, banana to safety plug (4 mm), touch-proof
- Measuring lead (red) 3m, banana to safety plug (4 mm), touch-proof
- 2 measuring electrodes 2.5 kg according to EOS/ESD-S4.1 and S7.1
- USB cable
- PC software KL_ReadOut on USB stick
- Operating instructions
- Calibration certificate
- Sturdy ALU case
Electric field meter EP-EFM823 with analog output
for measuring electric fields and electrostatic charges. The measured field strength (V/m) is automatically converted into the voltage potential (V) over the set measuring distance.
Measurement type: Influence principle (field mill principle)
Measuring range: 0 to ± 200kV
accessories included
- 3 pcs. 9V NiMH block batteries
- Plug charger for 9V battery
- Spiral earthing cable with tapping terminal
- Y-USB cable
- 2 spacers (2cm)
- Calibration certificate
- Operating instructions
Charge plate and HV transducer for EP-EFM823 for measuring the effectiveness of ionizers, among other things.
incl. accessories:
- Device base for EFM823
- Plate capacitor
- HV converter ± 1,200V
- Earthing cable for device base
- Operating instructions
Walk test for EP-EFM823 for the measurement of body voltage (walk test) according to IEC 61340-4-5
incl. accessories:
- Voltage measuring head for EFM823
- Hand electrode
- Silicone cable 3m
General accessories:
- A/D converter USB stick
- PC software KL Read Out
- Recorder output cable 3.5 mm jack/BNC
- Operating instructions
- Surface tester (EP0201009)
- Digital hygro-thermometer (EP0201039)

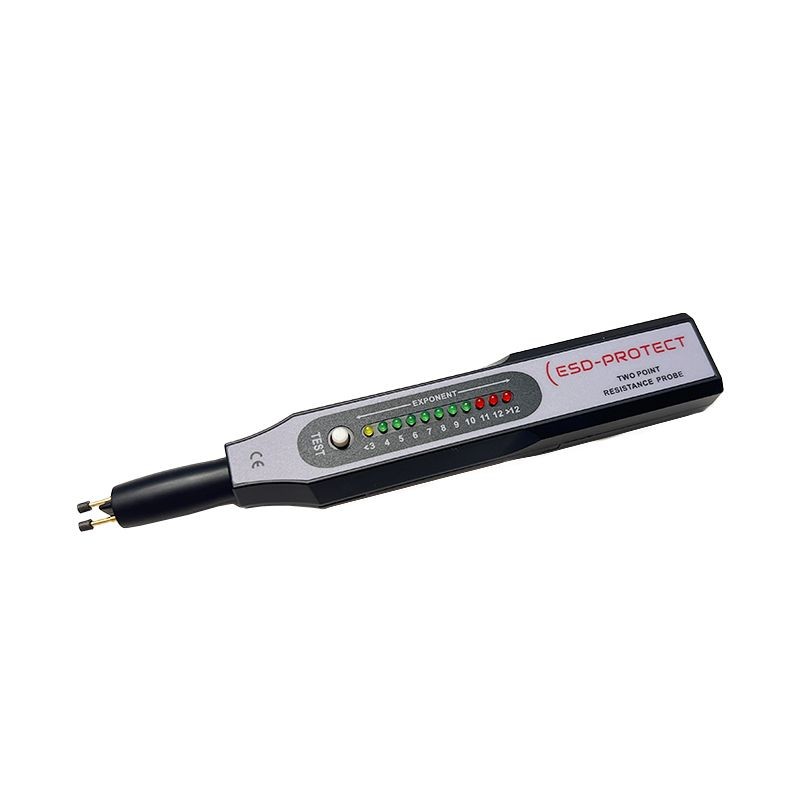

- Miniprobe (EP0201089)
- Ring electrode set in case (EP0204003)

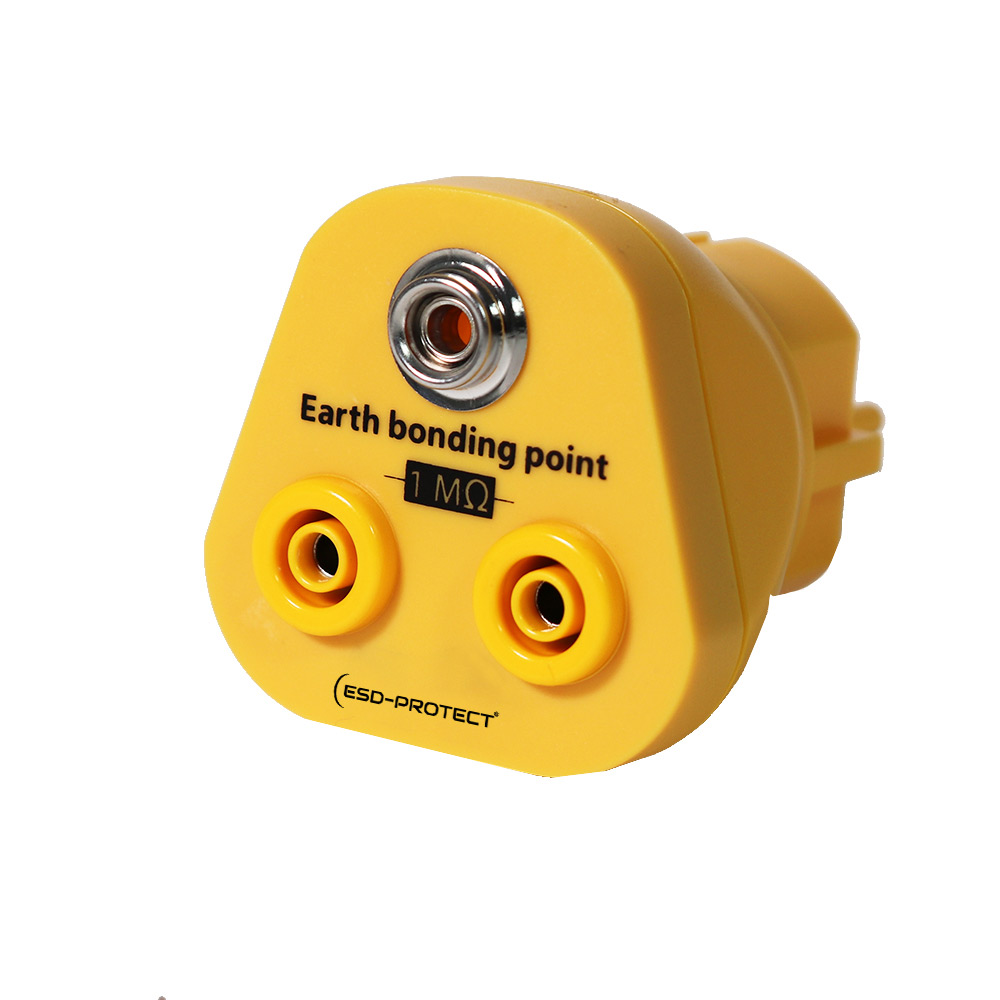

- Earthing module (EP0101001)
- Alligator clip with DK10 connection (EP0599010)
- Alligator clip for banana plug (EP0599009)
- Wrist strap with DK 10 (EP0105001)
- Coiled cable DK 10/DK 10 (EP0103009)
- Spiral cable, inv. Banana-DK10, 1.80m (EP0103016)
- Socket outlet tester for Schuko sockets (EP0201043)
- Hand reel for TERA-OHMMETER (EP0201007)
- Insulating plastic plate (400 x 300 x 6 mm)
- Metal plate (400 x 300 x 2 mm with earthing connection)
