BGT Visio 600 walk-in test/walking test
Article number:
EP0201066
E-Class:
27200390
UNSPSC:
41110000
Manufacturer:
ESD-PROTECT
Product information "BGT Visio 600 walk-in test/walking test"

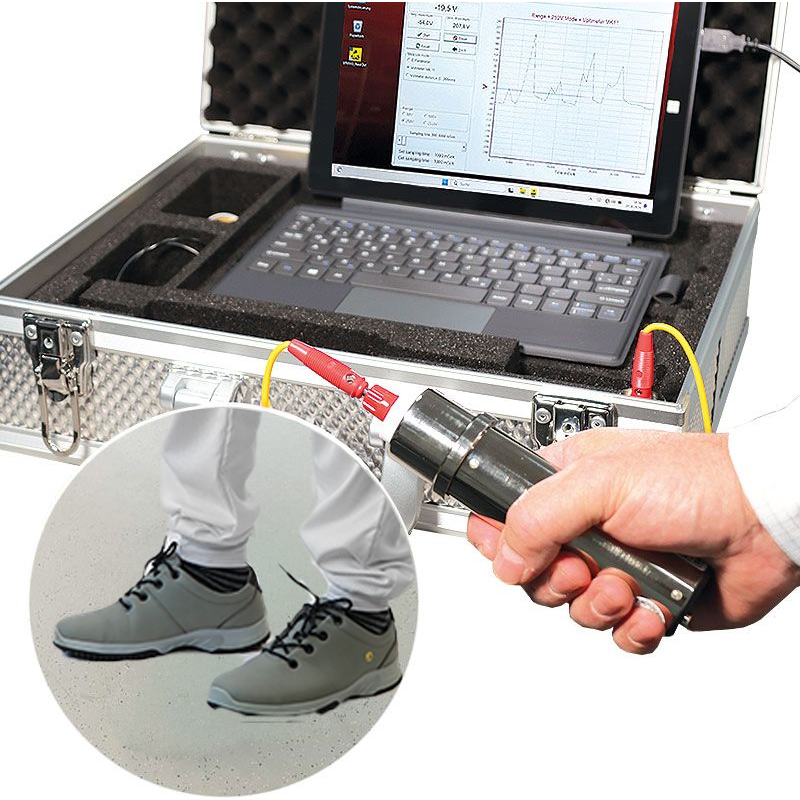

Visual walking test electric field meter (walking test) BGT Visio 600
High-precision electric field meter for walk test for measuring and displaying in real time the electrostatic charge of a person in accordance with IEC DIN EN 61340-4-5 when walking on an ESD floor with ESD shoes.
It is used for additional testing after the ESD floor has been tested for its discharge capacity, e.g. using a Tera-Resist 8000.
The measurements are shown directly on the tablet's display as a real-time measurement curve using the software supplied. The recorded data can be saved and archived as a measurement curve on the tablet.
To the product video
Scope of delivery:
- Electric field meter with high sensitivity and installed voltage measuring head
- Windows tablet with 10" touch display and detachable keyboard
- EFM Read_Out software (pre-installed)
- Aluminum system case with foam insert
- Earthing module with 1x DK 10 and 2x banana
- Hand electrode
- Silicone measuring cable, yellow, length 3 m
- USB cable with mini plug
- Spiral earthing cable with crocodile clip
- Operating instructions
- Calibration certificate
Also available as a PRORENT rental device .
| Abmessungen (Ø, Länge) | 36mm x 120mm |
| Gewicht | ca. 180 g |
| Abgleich mit Plattenkondensator | 200mm x 200mm, Distanz 25mm |
| Messbereiche | 5kV/m, 25kV/m, 50kV/m und 250kV/m |
| Abgleichgenauigkeit | < 5% |
| Stromversorgung | Schnittstelle |
| Erdung | über 4mm Bananenbusche (hinten) |
| Schnittstelle | USB |
