ESD-Personentester EPA-RESIST 8000

The most powerful and comprehensive measuring device on the market with in-house developed software, networking and technical after-sales support.

Including PC master software for central RFID transponder management.

Scope of services:

• 7" touch color display: Clear and intuitive operation with language selection German/English
• Display of measurement results and measurement of temperature and relative humidity
• Personal identification with RFID: test profiles and test results are assigned to the person
• 32-bit processor for fast and precise measurements for smooth passage at optional entrance systems
• Wrist strap and footwear verification
• Additional tests: glove and gown test
• Automatic shoe-to-shoe test
• Access authorizations can be assigned individually per employee or for groups
• Special test function for people at risk:
  Voltage-free body tests for pregnant women and people with active implants ensure access testing in the EPA.
• Measurement voltages adjustable between 33V, 50V or 100V
• Extensive configuration options for the individual test modes, also per employee
• Access control via 3 freely configurable relays
• Software updates: Software updates can be easily installed via USB stick using an integrated bootloader
• Free limit value definition:
  Individual adjustment of limit values for DIN changes or when working on live cables (personal protection takes precedence over ESD protection)
• Connection for automated calibration: On-site calibration without dismantling the EPA-RESIST
• Activation times: After a successful test, time intervals can be defined in which people do not have to test themselves again when they re-enter the EPA.

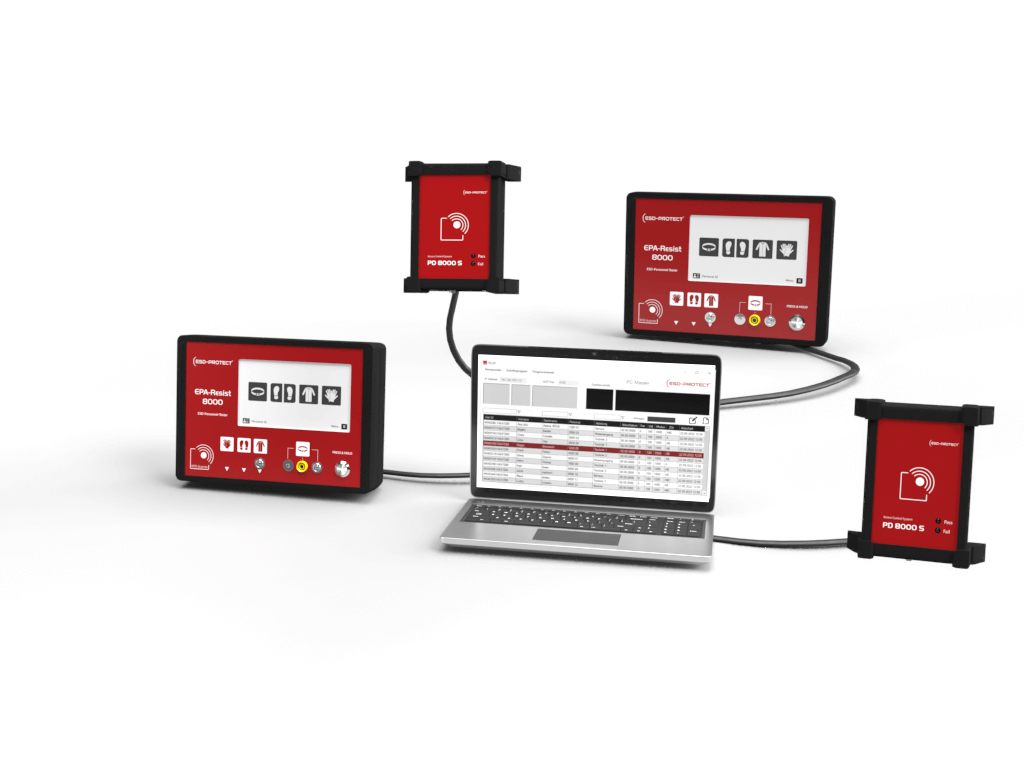

• LAN interface for networking several devices: For large EPA areas with several entrances, several EPA-RESIST 8000 or EPA-RESIST 8000S can be networked together.
• Central transponder management via PC master software:
  Personal data is read in or changed centrally on the PC and does not have to be entered on each individual networked device.
• Central storage of test results using data logger software (optionally available):
  Summary of all log data (test results) in a central daily file


¹⁾ Passive voltage test for people at risk with active implants (e.g. pacemakers, insulin sensors, hearing aids or pregnant women)

Settings / configuration

• Operation on the device via touch display and integrated on-screen menu
• On the PC with web application (programmed into the EPA-RESIST 8000, no software installation necessary)

Optional extensions:

• RFID access control EPA-RESIST 8000S

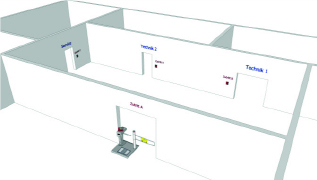

  The EPA-RESIST 8000S controls up to three access controls in the network via the active release times of people who have already been tested.
  This allows complex and distributed EPA zones to be designed flexibly and cost-effectively.

• PC app data logger
  The "Data logger" application saves all measurement logs of the EPA-RESIST 8000 in the network in real time in a daily file on the PC.
  Many filter functions support compliance with individual data protection guidelines.

Scope of delivery:

• EPA-RESIST 8000
• PC master software on USB stick
• Mounting bracket for wall or table mounting
• 24V power supply unit with power cable
• Foot electrode FE 100 EP0206062
• Relay output connection cable
• Operating instructions
• Calibration certificate

Also available as a PRORENT rental device.

A stand with mounting plate is optionally available(EP0206051)

SPECIAL SOLUTION with EUCHNER EKS:

The EPA-RESIST 8000 personnel test center in combination with the Euchner-Key system enables identification for the ESD personnel test and subsequent activation of a machine control at the workplace with just one Euchner chip.

The ESD personal test result is written to the chip by the EPA-RESIST 8000 and read out by the machine control unit at the workplace.

The information written to the chip by the EPA-RESIST 8000 is variable and can be adapted to customer requirements. (to the video)

video:

EPA access has never been easier, smarter and more digital!
