TERA-Ohmmeter TeraResist 8000 ME

€1,945.00 *

Prices plus VAT plus shipping costs

  • EP0201074
TeraResist 8000 ME high ohmmeter  The TERA-RESIST 8000 ME is a high-resistance... more

TeraResist 8000 ME high ohmmeter

 The TERA-RESIST 8000 ME is a high-resistance ohmmeter for measuring surface resistance. It is operated via a color touch display. The high-ohmmeter offers four fixed measuring voltages: 10 V, 100 V, 500 V and 1000 V.

 The auto measuring voltage function switches the measuring voltage automatically.

 The timer function allows you to measure over a defined period of time.

 An internal memory stores all measured values, which you can send to the PC via the USB interface using data export.

The supplied software imports and visualizes your measured values. The TERA-RESIST 8000 ME ohmmeter is supplied with two measuring electrodes, two silicone measuring leads and a power supply unit in a sturdy aluminum case.



  • Tera ohmmeter with touch screen display in case set
  • Operation via color touch screen display
  • 4 fixed measuring voltages
  • - 10 V, for measurements from 1 KΩ to 200 GΩ,
  • - 100 V, for measurements from 100 KΩ to 2 TΩ;
  • - 500 V, for measurements from 500 KΩ to 5 TΩ;
  • - 1,000 V, for measurements from 1 MΩ to 10 TΩ;
  •  Measurement of humidity and temperature
  • Auto measuring voltage (automatic switching of the measuring voltage)
  • Timer function (measurements over a definable period of time)
  • Break-down resistance measurement with graphical display
  • Internal memory for measured values with additional transfer of temperature, humidity, date and time
  • USB interface for data export and PC display (via supplied software)

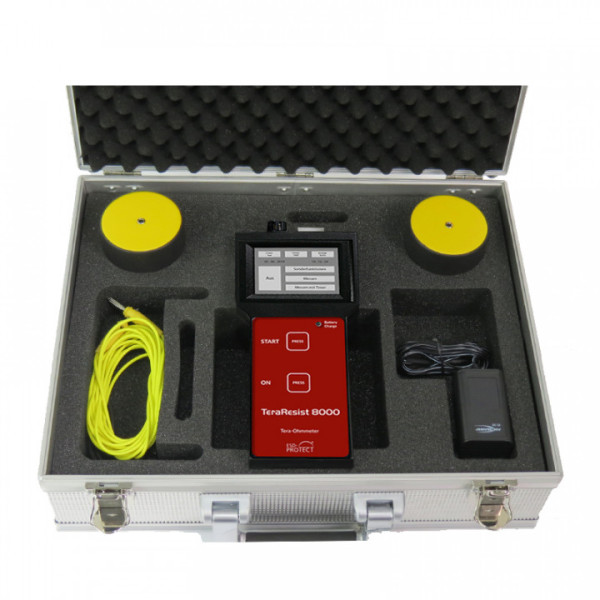

Scope of delivery:

  • Tera ohmmeter TeraResist 8000
  • Plug-in power supply 230V~ / 50Hz - 9V DC / 300mA
  • 4 x AA Mignon NiMH batteries
  • Test lead (yellow) 2m, safety plug to safety plug (4 mm), touch-proof
  • Measuring lead (red) 3m, safety plug to safety plug (4 mm), touch-proof
  • 2 measuring electrodes 2.5 kg according to EOS/ESD-S4.1 and S7.1
  • USB cable
  • PC software KL_ReadOut on USB stick
  • Operating instructions
  • Calibration certificate
  • Sturdy ALU case
